Understanding Kinetics in Designing Wastewater Treatment Units

Introduction to Kinetics in Wastewater Treatment

When it comes to designing efficient wastewater treatment systems, one of the most critical yet often overlooked aspects is reaction kinetics. Understanding how contaminants break down over time—and under specific environmental conditions—can mean the difference between an underperforming treatment unit and one that meets regulatory standards with ease.

🔬What is Kinetics in Wastewater Treatment?

Kinetics refers to the rate at which chemical and biological reactions occur. In wastewater treatment, we’re primarily concerned with the biodegradation of pollutants—organic matter, nitrogen compounds, phosphorus, and more. The speed at which microorganisms break down these pollutants directly influences how long the water needs to stay in the treatment system (hydraulic retention time), what volume the reactor needs to be, and how effective the overall system will be.

Key parameters such as reaction rate constants, substrate concentration, and biomass yield coefficients drive the design of unit operations such as aeration basins, sequencing batch reactors (SBRs), membrane bioreactors (MBRs), and trickling filters.

⚙️ Why Kinetics Matter in Unit Design

Designing a treatment unit without considering kinetics is like building a bridge without knowing the strength of the materials. Here’s why kinetics are vital:

1.Reactor Sizing and Hydraulic Retention Time (HRT)

The reaction kinetics directly influence HRT. For a first-order system, the HRT required to reach a target effluent concentration can be expressed using:

C = C_0 e^{-k \cdot t}

where k is the rate constant, t is retention time, and C_0 is influent concentration

In Monod-type systems, HRT is also coupled with biomass concentration and microbial kinetics, making mass balance modeling essential during preliminary design.

2.Activated Sludge Process Control

For activated sludge systems, parameters such as μ_max (maximum specific growth rate), Ks (half-saturation constant), and Y (yield coefficient) govern:

• Sludge age (θ_c)

• Food-to-microorganism ratio (F/M)

• Reactor volume and aeration load

Applying the Monod equation allows you to simulate system dynamics and optimize performance:

\mu = \mu_{\text{max}} \cdot \frac{S}{K_s + S}

These values are crucial for determining oxygen demand, nutrient requirements, and the biomass wasting rate.

3.Sludge Production and Management

Kinetics also affect the net biomass yield and endogenous decay, which in turn influence sludge handling units—from thickeners to digesters. Accurately predicting sludge generation rates prevents under- or over-sizing downstream systems.

4.Aeration System Design

For aerobic systems, oxygen transfer must match the biochemical oxygen demand (BOD) removal rate. The oxygen uptake rate (OUR) is derived from kinetic models and is critical in specifying blower capacity and fine-tuning energy usage.

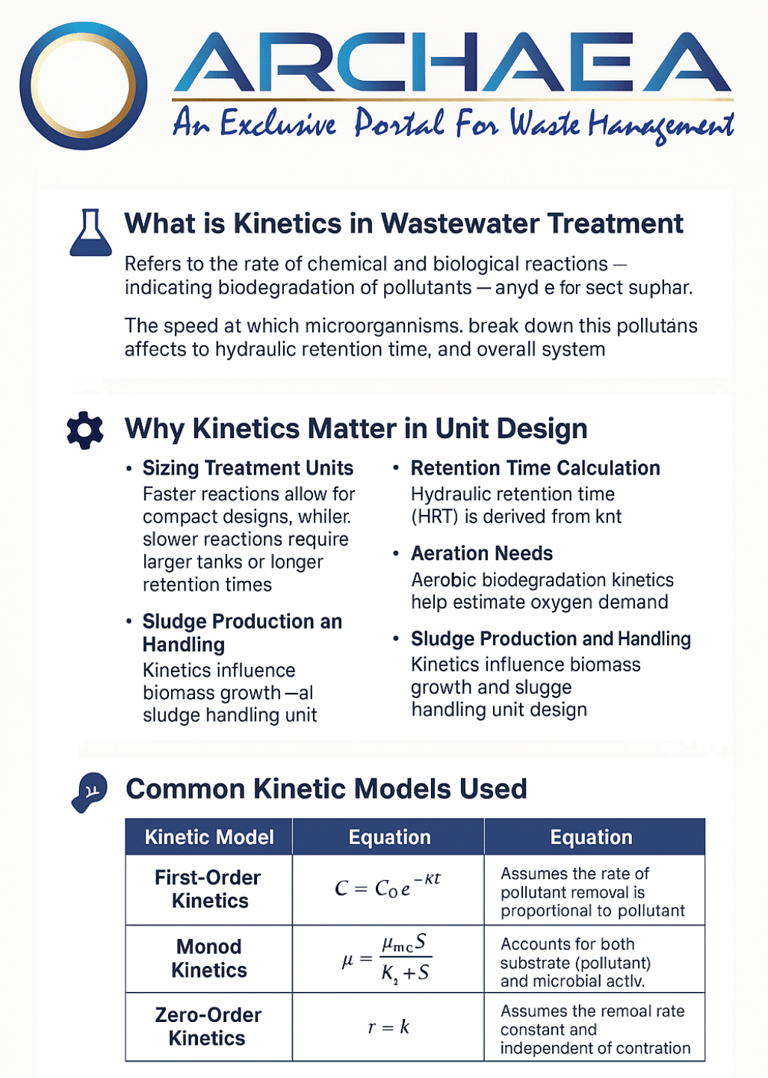

📈 Common Kinetic Models Used

1. First-Order Kinetics:

   Assumes the rate of pollutant removal is proportional to the concentration of the pollutant. This is common in initial design phases.

2. Monod Kinetics:

   A more refined model, often used in biological treatment systems, which accounts for both substrate (pollutant) and microbial activity.

3. Zero-Order Kinetics:

   Assumes the removal rate is constant and independent of concentration—applicable when substrate levels are very high.

💡 Real-World Application

Let’s say you’re designing a biological aeration tank for municipal wastewater. You know the influent BOD is 300 mg/L, and you aim to reduce it to below 30 mg/L. Based on lab or pilot-scale experiments, you determine that the system follows Monod kinetics with a maximum growth rate (μ_max) and half-saturation constant (Ks).

With these parameters, you can:

• Estimate the reactor volume required.

• Calculate the oxygen transfer rate needed.

• Determine sludge age and recycle ratio for activated sludge systems.

🧠 Final Thoughts

In conclusion, the role of kinetics in designing wastewater treatment units cannot be overstated. Incorporating kinetics into design considerations helps ensure that treatment processes are optimized for performance and compliance. As regulations become stricter and environmental concerns rise, the knowledge of reaction rates and dynamics will significantly influence the future development of effective wastewater treatment technologies.
